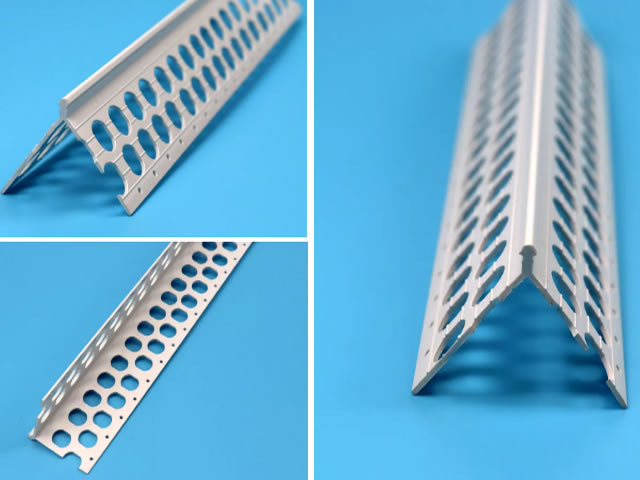

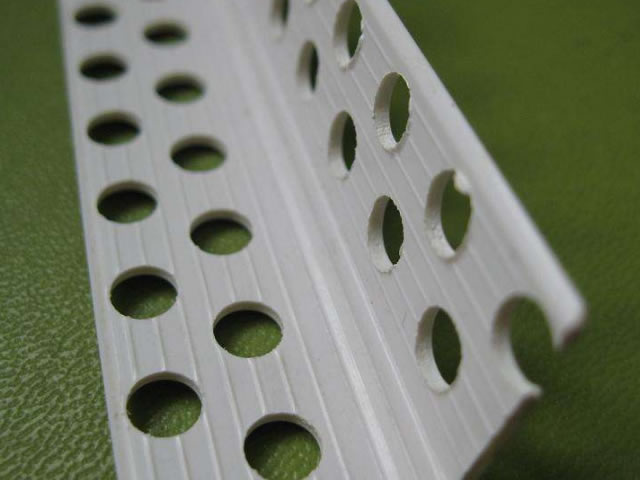

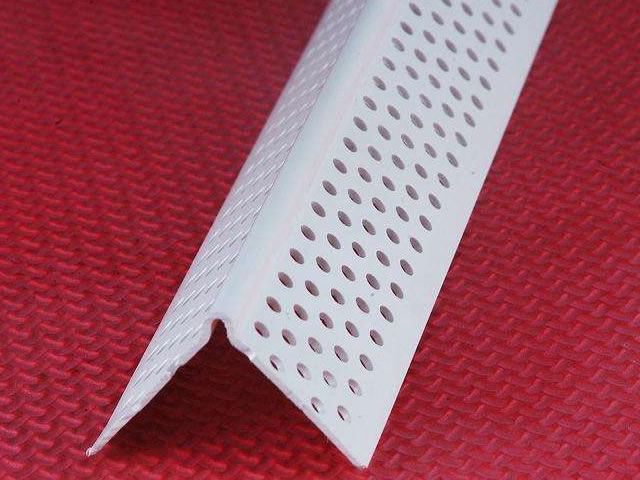

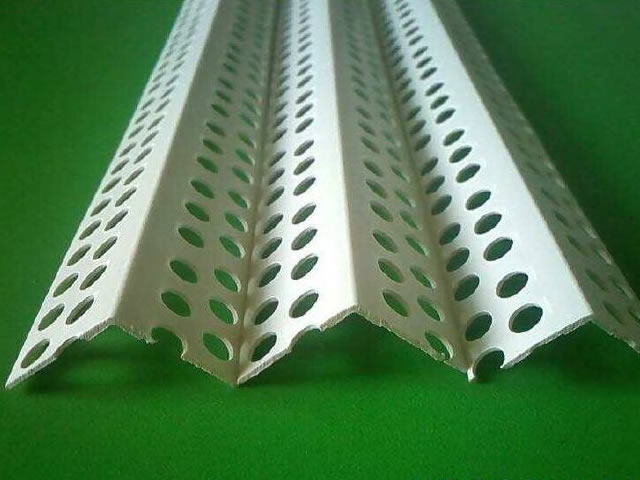

PVC corner beads are made of high density plastic material in Y, L, channel and various designs, popularly used in construction of wall insulation system.
Types of PVC Plaster Beads:
PVC J bead (width 12,5mm, short side – min. 10mm, long side – min. 18mm, white color)
PVC corner bead Y type (23x23mm, min. weight 0,12kg/2,5m, white color, “nose” 5-6mm)
Steel corner bead (23x23mm, min. thickness 0,40mm, min. weight 0,29kg/2,5m, min. zinc Z250)
PVC corner bead common range of sizes:
1. PVC corner bead width: 25mm x 25mm, other size.
2. PVC corner bead length: 2m -2.5m
3. Plastering mesh fabric for PVC corner bead: Width: 100mm x 100mm
4. Packaging: 200 pieces per carton, or according to customer requirements.
5. Quality/safety certification of PVC angle guards: ISO9001.2000, ITB
PVC Corner Beads have these features:
1. Corrosion resistance, impact resistance, anti-aging, good weather resistance
2. Convenient construction and operation;
3. Wide range of uses in construction of balconies, stairs, indoor and outdoor corners, window sills, arched doors and windows, etc.;
4. High strength;
5. Using PVC corner guards greatly reduces the higher cost by using metal, wood, and other material.
Applying PVC Angle Beads in Construction:
1. First apply the insulation board adhesive agent on the outside of the wall
2. Paste the insulation board, and then apply the mortar layer
3. Press the pvc corner / angle bead product to the corner of the wall and fix it with caulking paste or stabilizing nails
4. The mortar is overflowed from the hole of the corner bead, and then the anti-cracking plastering mortar layer is applied.
